Magnum Heating – Electric Mat

Category:

Magnum Heating – Electric Mat

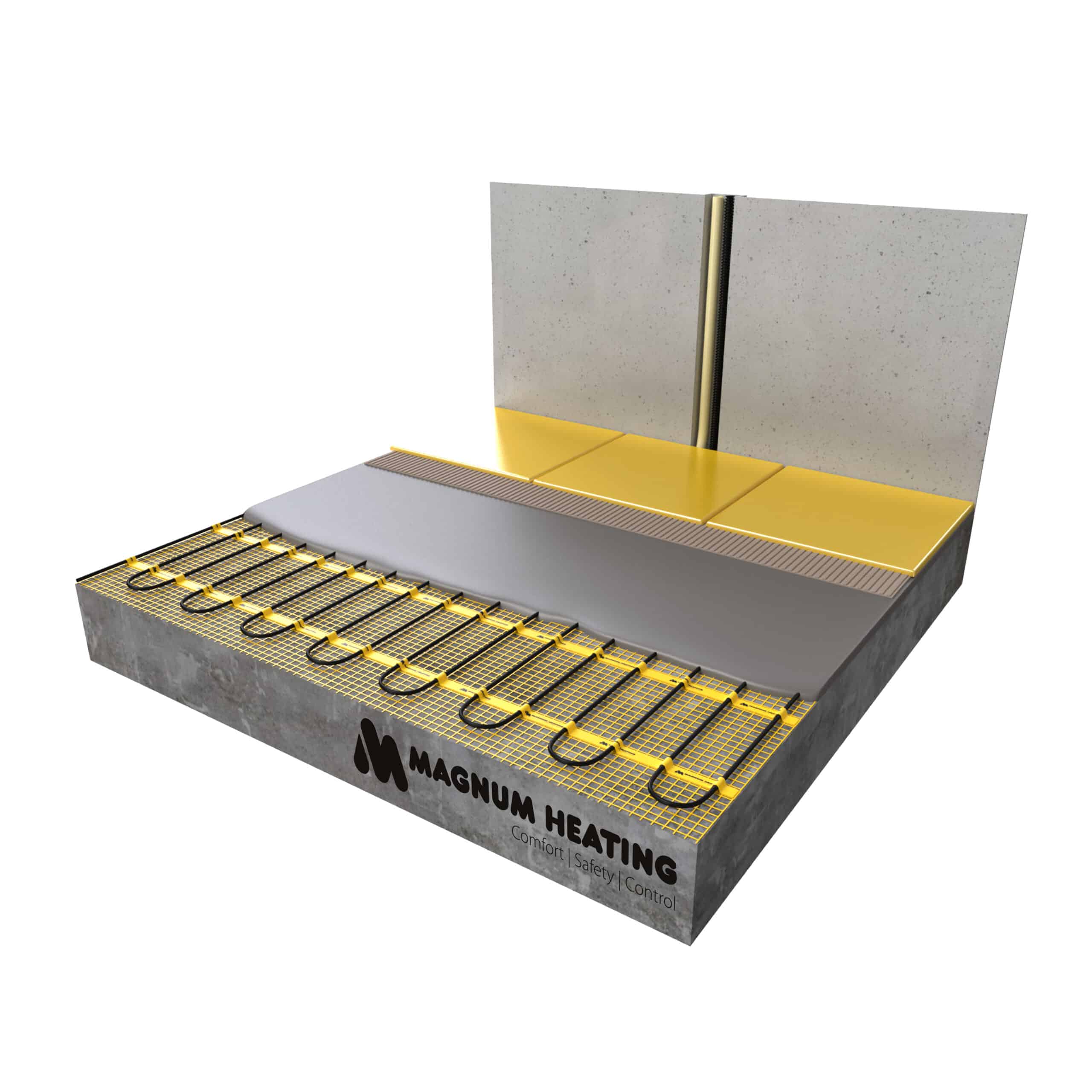

The MAGNUM Mat is a unique underfloor heating electric mat. The system is designed to allow underfloor heating to be installed over an existing tiled floor or on top of a screed that has already been installed. The mat is approximately 4 mm thin and can be included in an adhesive layer without demolition and milling out. The mat is placed almost directly under the surface. This increases the heating rate of the floor which also makes the system suitable for areas with non-permanent occupancy such as bathrooms, hobby rooms, recreation rooms etc.

The advanced WiFi thermostat takes into account the necessary warm-up time, so your floor will always be the right temperature at the desired time.

MAGNUM Mat is available in 22 different sizes from 0,75 to 25m². Because the heating cable on the mat is connected at the end, there is only one side with a power cable, which is invisibly attached through a unique blind connection. This means that there is no need for a return to the thermostat.

Get a Quote

Product Description

MAGNUM Mat is a unique underfloor heating mat. The system is designed to install underfloor heating over an existing tiled floor or over a screed that has already been laid.

  • System type Electric
    System height 4 mm
    System width 25 or 50 cm
    Min. setting height 10 mm
    Installation Self-levelling / Tile adhesive
    Power 125 or 150W/m2
    In wet areas V
    Tiles V
    Wood V (i.c.w. self-levelling)
    (PVC) Laminate V (i.c.w. self-levelling)
    Carpet V (i.c.w. self-levelling)
    Certification CE, VDE
    Warranty Lifetime*
  • Directly into tile adhesive
  • Self-levelling casting mortars
  • In plaster/mortar
  • Anhydrite floorsMAGNUM Mat is not suitable for use in lightweight concrete
